Product Description:
SS551AT SS351AT SS451A Full-Range Hall Effect Digital Position Sensor Ics
Features:
SS551AT Hall Effect digital position sensor IC, full polarity, low sensitivity, SOT-89B, 1000 units/pocket tape and reel.
The SS551AT series of low-cost bipolar Hall effect sensor ics adopt surface mount packaging and feature thermal balance integrated circuits throughout the entire temperature range. Bipolar magnetic responses alternate between the North Pole and the South Pole.
The built-in voltage stabilizer can provide very stable operation within the power supply voltage range of 4.5Vdc to 24Vdc. The internal circuit can prevent sensor damage and avoid unexpected reversal of the power supply voltage polarity. The SS50AT series of low-cost bipolar Hall effect sensors are small, multi-functional digital Hall effect devices operated by the magnetic fields of permanent magnets or electromagnets. The output voltage of the collector open drain can be easily connected to various electronic circuits.
Note: Integrated circuits offer excellent temperature stability and accuracy in robust designs. The operating temperature range of these digital Hall sensors is -40°C to 125°C [-40°F to 257°F], making them suitable for commercial, consumer and industrial environments.
Technical Specification
Series names: SS351AT, SS451A, SS551AT
Magnetic drive type all-pole
The maximum output voltage is 0.4 Vdc
The output current is 20 milliamperes
Output type sinking
Storage temperature: -40°C to 150°C [-40°F to 302°F]
Release point -40 G typ. (-40°C to 150°C)

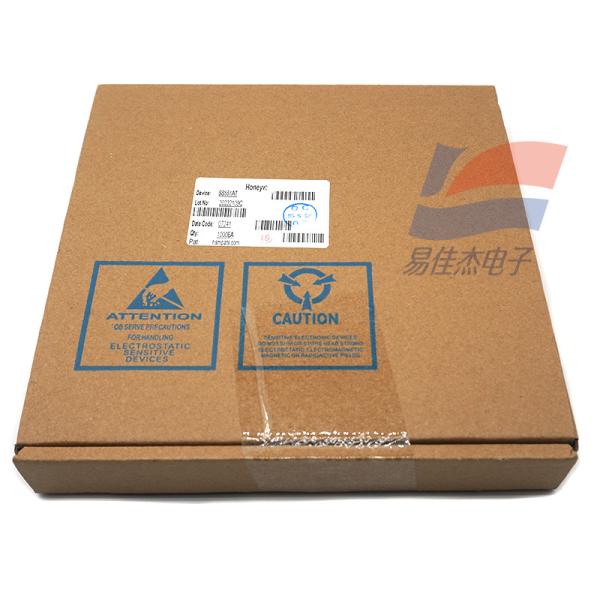

Packaging type SOT-89B, pocket tape and reels, 1000 pieces per roll
The switching time decreased (by 90% to 10%) by up to 1.5μs
Product category: Hall Effect Digital Position Sensor IC
Power supply voltage: 3 Vdc to 24 Vdc (-40°C to 150°C)
The typical value of power supply current is 3.5 mA. (25°C, 3 Vdc)
The maximum leakage current is 10μA
Operating temperature: -40°C to 150°C [-40°F to 302°F]
Operation point: 85 G typ. (-40°C to 150°C)
Differentiate 35 G typ. (-40°C to 150°C)
The switching time increases (from 10% to 90%) by up to 1.5μs
Availability Worldwide
Product function
Microstructure: SOT-89B plastic packaging, reels and reels for automatic assembly
When the energy efficiency is only 4.5Vdc, the maximum power consumption is only 5mA
Digital current absorption output
Bipolar magnetic elements for ring magnet applications
High output current capacity (20 mA)
High speed - The operating frequency range is 0 kHz to over 100 kHz
The wide temperature range is from -40°C to 125°C [-40°F to 257°F]
Built-in reverse polarity protection
Application
Speed and RPM sensors
Commutation of brushless DC motor
Motor and fan control
Magnetic coding
Tachometer, counter pickup truck
Optical disc speed, tape rotation sensing
Flow sensing
Specifications:
| Sensor type | Magnetic sensor |
| Sensing range | ±50mT |
| Work Point (BOP | SS551AT SS351AT SS451A |
| Power supply voltage | 30V |
