AWM92200V Air Flow Sensor for Calibration Gas Air Ratiometricity Error3 ±0.30% Reading Typ

Name: AWM92200V Air Flow Sensor for Calibration Gas Air Ratiometricity Error3 030 Reading Typ
Brand: Honeywell
Price: 1 USD

Wholesale AWM92200V Air Flow Sensor for Calibration Gas Air Ratiometricity Error3 ±0.30% Reading Typ from china suppliers

Brand Name : Honeywell

Model Number : AWM92200V

Place of Origin : USA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Type : differential

Pressure range : ±5 mbar | ± 500 Pa | ±2.0 inH2 O

Calibration gas : air

Excitation voltage3 : 8.0 Vdc min./10 Vdc ±0.01 Vdc typ./15 Vdc max.

Full scale output : 45 mV ±25 mV

Ratiometricity error3 : ±0.30 %reading typ.

Contact Now

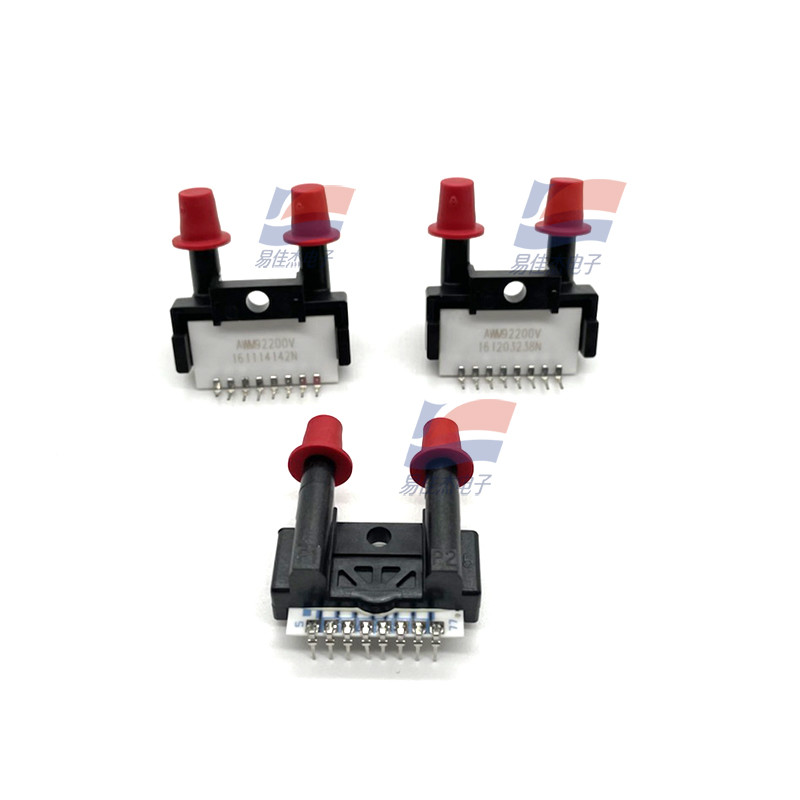

AWM92200V Air Flow Sensor

Airflow Sensors :

AWM90000 Series microbridge mass airflow sensors are available in two versions, mass flow and differential pressure.

The AWM92100V has a flow range of ±200 SCCM with a pressure drop of only 0.49 mbar | 49 Pa | 0.007 psi, typically. The AWM92200V is a differential pressure version that has a range of ±2 inH2 O.

The AWM90000 Series sensors have a 1 ms response time, operate with a supply voltage from 8.0 Vdc to 15.0 Vdc, while consuming only 50 mW of power. The compact plastic package will withstand a maximum overpressure of 1720 mbar | 72 kPa | 25 psi without compromising performance.

The sensor is well suited for use in portable devices and battery powered applications.

The AWM90000 Series provides customers with a combination of time-proven reliability, repeatable flow sensing, and the ability to customize the sensor functions to meet their specific application needs.

MedICAL:

• Continuous Positive Airway Pressure (CPAP) equipment

• Sleep apnea monitors

• Oxygen conservers

• Oxygen concentrators

• Nebulizers • Spirometers

INdUSTRIAL :

• Variable Air Volume (VAV) damper control

• Clogged filter detection

• Fuel to air ratio sensing

• Leak detection equipment

Repeatability and hysteresis4	±0.1 %reading typ.
Response time	3 ms typ.
Overpressure	1720 mbar \| 172 kPa \| 25 psi max.
Vibration	20 g, 10 Hz to 2000 Hz
