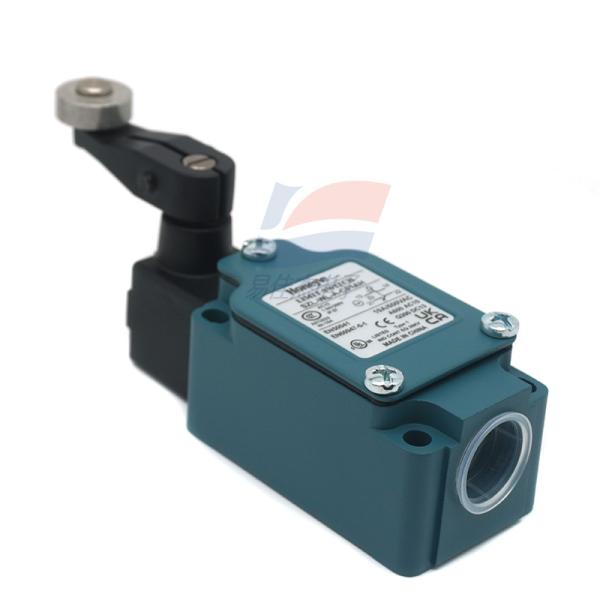

YJJ SZL-VL-S-J-N Miniature Limit Switch Is Used Machines Other Equipment For Industrial Scenarios With Limited Space
Features:
Electrical parameters
Parameter category Specific indicators
Rated voltage Maximum AC 380VAC, maximum DC 220VDC
Rated current AC circuit (AC - 15) 0.5A, DC circuit (DC - 13) 0.05A
Contact configuration Single-pole double-throw (SPDT), including normally open and normally closed contacts, using a forced-break design, contact material is silver alloy
Heat current Heat current can reach 10A at 250VAC
Electrical insulation performance Pulse withstand voltage 2500VDC, insulation voltage between terminal and housing of metal enclosure 1890VAC
Action frequency Mechanical action frequency up to 120 times/minute, electrical action frequency up to 30 times/minute
Mechanical and operation parameters
Parameter category Specific indicators
Actuator Side-mounted rotating adjustable steel roller actuator, actuator length 6.5mm
Operating force Maximum operating force 18N
Operating speed Compatible with operating speed range of 0.05mm/s - 2m/s, compatible with triggering requirements in different working conditions
Mechanical life Up to 10 million cycles (120 times/minute working condition)
Electrical life Rated resistance load, up to 500,000 cycles (30 times/minute working condition)
Environmental and protection parameters
Parameter category Specific indicators
Operating temperature Applicable temperature range -20℃ - 70℃, compatible with most industrial normal temperature and mild high-low temperature scenarios
Operating humidity Resistant to 95% RH high-humidity environment, sealed design can cope with the influence of humid conditions
Protection level IP67, has good waterproof and dustproof ability, compatible with dusty and humid industrial environments
Impact and vibration resistance Resistant to 30g impact (in accordance with IEC 60068 - 2 - 27 standard); resistant to 10g, 10Hz - 55Hz vibration environment
Pollution level Compatible with 3-level pollution environment, compatible with complex industrial scenarios with many conductive pollution
Physical and certification parameters
Parameter category Specific indicators
Shell and material Shell is die-cast metal material, combined with a flame-retardant thermoplastic plastic cover filled with glass, structure is sturdy
Weight Weight is between 120 - 150g, convenient for installation and deployment
Installation method Supports conduit connection or cable sealed connector connection, installation center size is 21mm×56mm, compatible with narrow installation space
Specifications:
| Rated Current | 500mA |
| Rated Voltage | 380V |
| Circuit Type | SPDT |
| Protection Grade | IP67 |
| Response time | 10 seconds |
